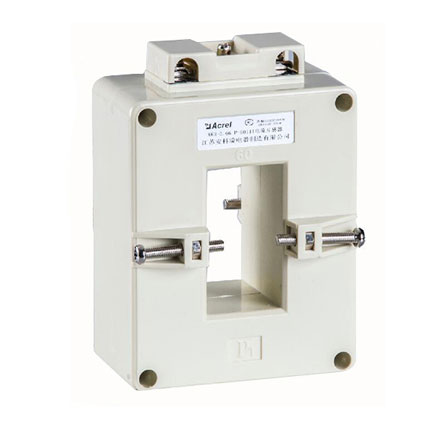

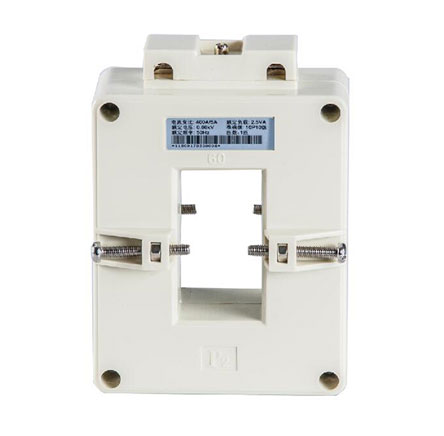

AKH-0.66系列電流互感器
聯系我們
應用范圍：
低壓配電保護系統。訂貨范例：
具體型號：AKH-0.66/P P-60III 600/5AKH-0.66P低壓保護用電流互感器
AKH-0.66P-I低壓電動機保護器專用電流互感器

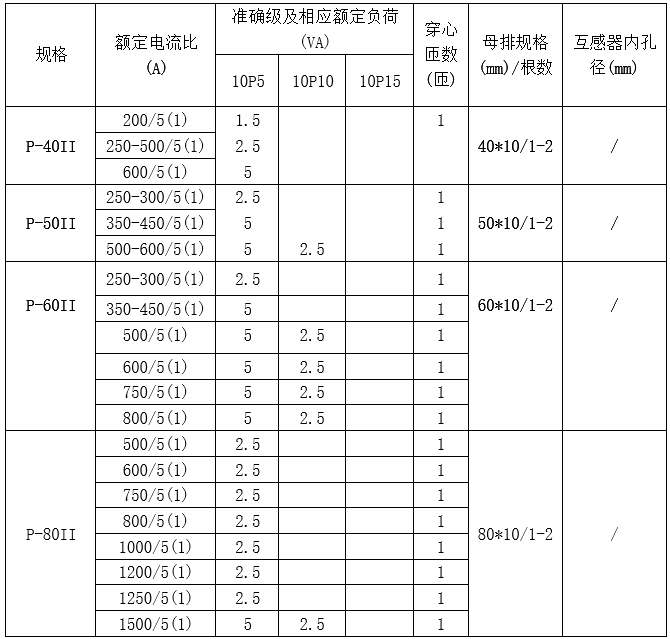

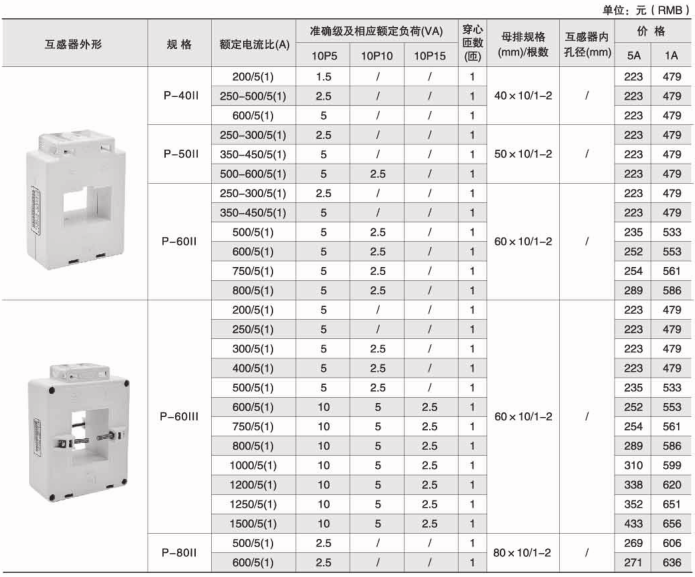

| 規 格 | 額定電流比(A) | 準確級 | 額定負荷(VA) | 安裝方式 |
| P-40I | 250/0.05 | 0.5 | 1.25 | A、C |
| P-60I | 800/0.1 | 0.5 | 5 | |
| P-40II | 250-400/5(1) | 10P10 | 2.5 | |
| P-50II | 250-600/5(1) | 2.5 | ||
| P-60III | 300-400/5(1) | 2.5 | C | |
| 500-800/5(1) | 5 | |||
| P-80III | 500-800/5(1) | 5 | D | |
| 1000-1500/5(1) | 10 |

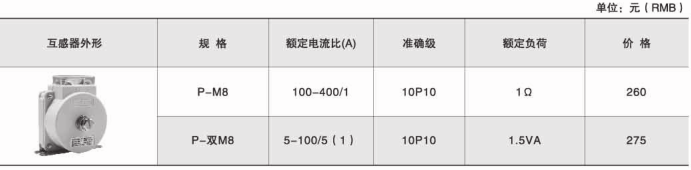

AKH-0.66 P-M8型保護用電流互感器
| 規格 | 額定電流比(A) | 準確級及相應額定負荷(VA) | 短時熱電流/(kA) | 額定動穩定電流 /(kA) | 穿心匝數 | 扭距值 | |||
| KGM | NM | ||||||||
| 5P5 | 5P10 | 10P10 | |||||||
| P-M8 | 100/1 | 1.5 | / | / | 7.5 | 18.5 | 直接式 | 7 | 69 |
| 150/1 | 2 | / | 1 | 10 | 25 | ||||
| 200/1 | 3.75 | 1.0 | 1.5 | 15 | 22.5 | ||||
| 250/1 | 5 | 1.5 | 2.0 | 18 | 45 | ||||
| 300/1 | 5 | 1.5 | 2.0 | 21 | 52.5 | ||||
| 400/1 | 5 | 2.0 | 2.5 | 21 | 52.5 | ||||
| P-雙M8 | 5/5(1) | 2.5 | 2.5 | 2.5 | 0.5 | 1 | 直 接 式 | 7 | 69 |
| 10/5(1) | 2.5 | 2.5 | 2.5 | 1 | 2 | ||||
| 15/5(1) | 2.5 | 2.5 | 2.5 | 3 | 6 | ||||
| 20/5(1) | 2.5 | 2.5 | 2.5 | 4 | 8 | ||||
| 25/5(1) | 2.5 | 2.5 | 2.5 | 5 | 10 | ||||
| 30/5(1) | 2.5 | 2.5 | 2.5 | 6 | 12 | ||||
| 40/5(1) | 2.5 | 2.5 | 2.5 | 6 | 12 | ||||
| 50/5(1) | 2.5 | 2.5 | 2.5 | 6 | 12 | ||||
| 60/5(1) | 2.5 | 2.5 | 2.5 | 6 | 12 | ||||
| 75/5(1) | 2.5 | 2.5 | 2.5 | 6 | 12 | ||||
| 100/5(1) | 2.5 | 2.5 | 2.5 | 10 | 12 | ||||
AKH-0.66P低壓保護用電流互感器
AKH-0.66P-I低壓電動機保護器專用電流互感器
AKH-0.66 P-M8型保護用電流互感器
AKH-0.66P低壓保護用電流互感器
AKH-0.66P-I低壓電動機保護器專用電流互感器
AKH-0.66P-M8型保護用電流互感器
